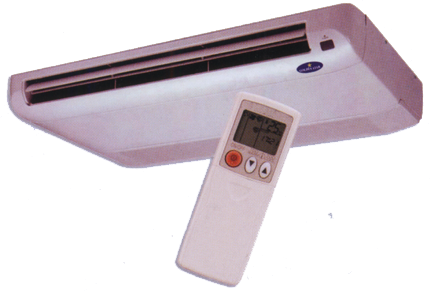

Universal Type ( Indoor – ceiling / Floor )

Specifications
Model
GSUD
18
24
30
36
48
60
COOLING CAPACITY
BTU/HR
18250
25200
30650
36650
48200
60600
AIR FLOW
CFM
600
750
880
1050
1400
1700
POWER SUPPLY
V/PH/HZ
220-240/1/50--208-230/1/60
380-415/3/50
FAN MOTOR INDOOR
WATT
1/15
1/15
1/10
1/10X2
1/10X2
1/10X2
FAN MOTOR RATED LOAD
AMPS
0.50
0.50
0.60
1.0
1.0
1.2
COIL
TYPE
SLIT FIN/INNER GROOVED TUBE
FILTER
TYPE
ANTIFUNGAL-WASHABLE
DIMENSIONS
HEIGHT(MM)
665
664
665
665
665
665
WIDTH(MM)
975
1285
1285
1585
1890
1890
DEPTH(MM)
235
235
235
235
235
235
WEIGHT
KG
36
44
46
56
61
64
PIPE CONNECTION SIZE
LIQUID/SUCTION(IN)
1/4-1//2
3/8-5/8
3/8-5/8
3/8-3/4
3/8-7/8
3/8-7/8
REFRIGERANT
TYPE
R-22
COUPLER TYPE
TYPE
FLARE

Note : Model No. GSUD 36 unit is also available for 380-415/3/50 on order

The above data and specifications are subject to change without any prior notice for product improvements
